inoRAC Remote Racking inolect

What if you have 20 substations?

Your facility is unique and we understand. That's why we've created a Remote Racking

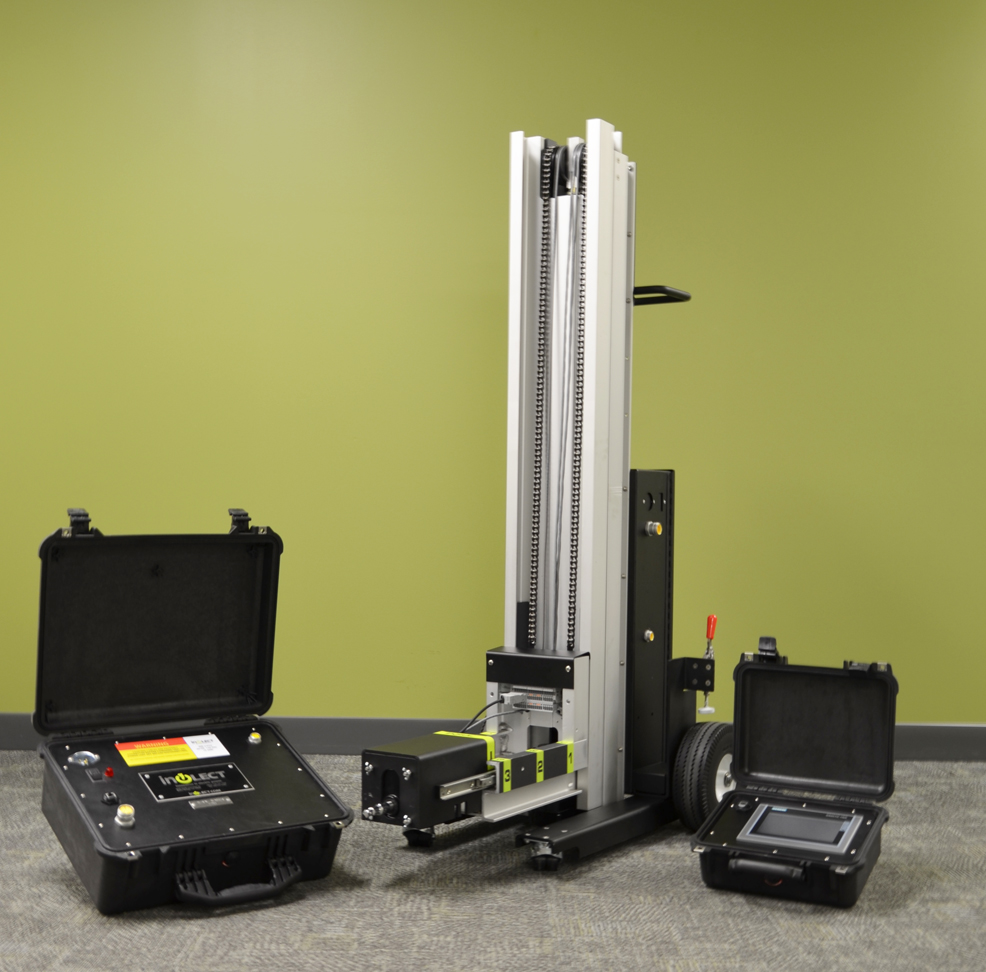

product for customers with multiple substations or switchgear locations. The inoRAC2
Portable device consists of an anodized aluminum base, and two portable cases. The
base component is similar to that of the original inoRAC unit, but without the technical
components. Portable Remote Racking device for Arc Flash injury prevention

All computerized "smart pieces" have been removed and placed in the cases
for easy relocation. The larger box is the Portable Control Unit (PCU), which contains the
drive operation hardware. The smaller box contains the Portable Touchscreen Panel, where
the operator will control all operations. The boxes are connected with two (2) cables, which
can be any specified length needed. This will allow customers to purchase any number of
base units, and have them all function with one set of "smart" cases.



Safety is the key. For that reason, inoLECT has designed a custom Remote Racking unit that can be programmed to safely rack all of your power breakers in and out. Remote Racking allows your operators to perform their duties at a safe distance. By allowing operators to remotely rack breakers over 75 feet away, the inoRAC™ can greatly reduce the risk of sustaining an arc flash injury. The inoRAC™ remote racking device can operate all major manufacturers low and medium voltage breakers, it's easy to move and can be custom programmed to mimic site breaker operating procedures.



To ensure safe operation, inoLECT will provide on-site professional training with your employees on your switchgear.

Safe

• Unit constantly controls & monitors torque & position to protect personnel & equipment from damage
• Remotely operated from outside of the arc flash boundary, over 75’ away

User-Friendly

• Compatible with LV and MV circuit breakers from all major manufacturers
• Forklift/Dolly design is easy stored & maneuvered
• Accessories allow one unit to operate different breakers

Efficient

• High-Def Color touch panel provides realtime feedback of breaker status
• Adjustable motor can be raised or lowered to align with any level of breaker
• Unit racks breakers quicker & safer than can be achieved by hand













Click above to see the Racking device operate specific breakers. If your specific breaker isn't featured, we'd LOVE to come out and rack it for you. Contact your local Account Manager to set up a FREE demo.
